Deep imaging in Hydrogen Alpha

Team members - Carl Scottish - Martin Nicholson - Lloyd Ranal - Frank Harris - Ralph Billig

Page 1 - Page 2 - Page 3 - Page 4 - Page 5 - Page 6 - Page 7 - Page 8 - Page 9

Return to the astronomical imaging front page


Image centered on GSC 3155:0466 at RA 20 16 58.48 and DEC +41 11 10.07

Image details - 12 x 300 seconds in hydrogen alpha, binned 3 x 3.

Field of view 83 by 123 arc minutes

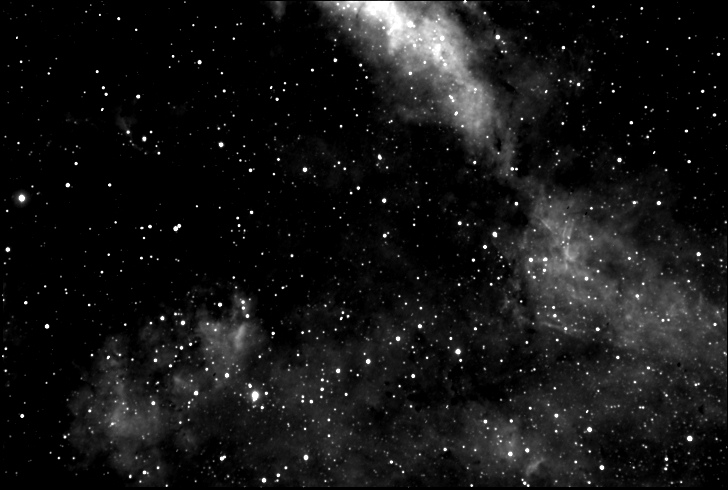

Twelve images combined - no further processing


After digital development in MaxIm

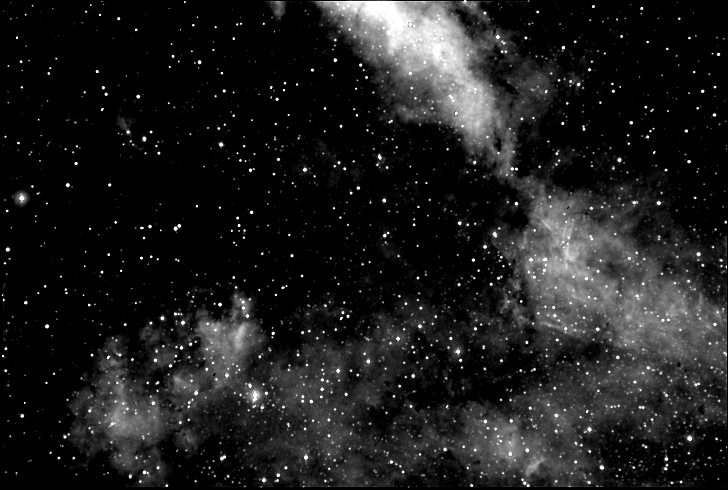

After image stretching

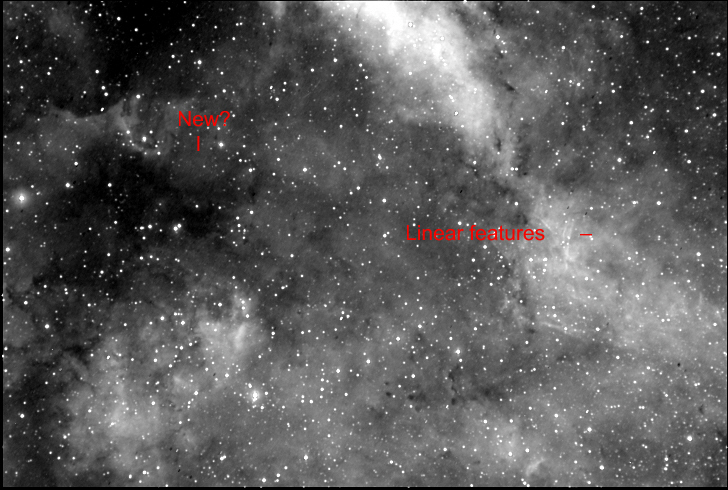

The area at the top of the picture is the bright nebula IC1318A. The open cluster Do 6, towards the top left, is surrounded by the nebulosity DWB 84 however the nebulosity that joins the two, brightest around TYC 3159-356-1 (20 19 21.69 +41 23 29.03), appears to be a new discovery.

The curious linear features stretching north at 20 14 03 +41 18 40 can be confirmed in the DSS images (see below) but do not appear in Simbad. New discoveries?

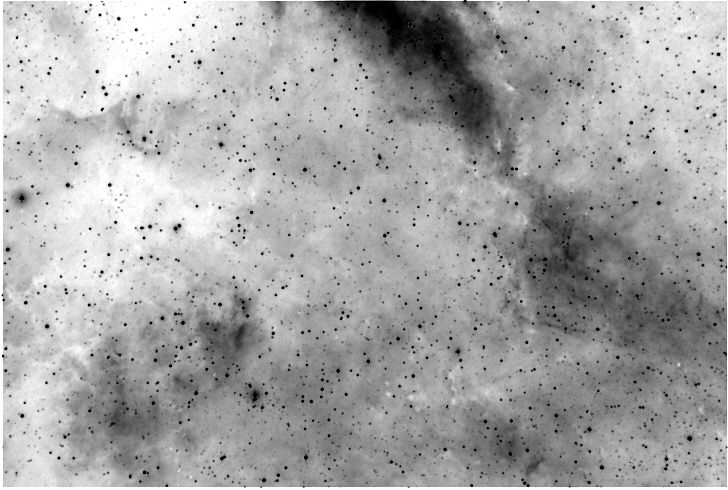

After black/white reversal


Martin Nicholson - Daventry, United Kingdom.

This page was last updated on October 9th 2007.
